ZigBee Technology: Wireless Control that Simply Works


Why is ZigBee wanted?

There are an incalculable number of measures that deliver mid to elevated information rates for voice, PC LANs, movie, and whatnot. Notwithstanding, up till now there hasn't been a satellite grid standard that helps sensors and control apparatuses. Sensors and controls don’t need elevated transfer speed but they do need level inertness and quite level power devouring for extended electric cell exists and for great mechanism clusters.

There are an incalculable number of exclusive satellite frameworks fabricated today to tackle a nearly infinite amount of situations that additionally don’t need elevated information rates but do need ease and particularly level current empty.

These exclusive frameworks were outlined on the grounds that there were no gauges that met their prerequisites. The proposed legacy frameworks are making huge interoperability issues with one another and with fresher innovations.

The ZigBee Partnership is not prodding an engineering; rather its furnishing a standardized base set of fixes for sensor and control frameworks.

The physical layer was composed to oblige the requirement for a minimal effort yet taking into consideration large amounts of incorporation. The utilization of immediate grouping permits the simple hardware to be particularly straightforward and particularly tolerant towards modest implementations.

The media access control (MAC) layer was planned to permit numerous topologies without intricacy. The force administration operation doesn’t need various modes of operation. The MAC permits a decreased purpose apparatus (RFD) that needn’t have glimmer nor impressive measures of ROM or Smash. The MAC was outlined to handle huge various apparatuses without needing them to be “stopped”.

The system layer has been outlined to permit the system to spatially develop without needing elevated power transmitters. The system layer moreover can handle huge measures of junctions with comparatively flat latencies.


ZigBee is poised to come to be the worldwide control/sensor arrangement standard. All things considered, the situation has been outlined to furnish the accompanying offers:

Low power devouring, basically executed

Users anticipate electric storage devices to final numerous months to years! Recognize that an ordinary single family house has in the vicinity of 6 smoke/CO indicators. In the event that the electric cells for every one just kept up six months, the property holder could be swapping electric cells each month!

Bluetooth has numerous unexpected modes and states relying on your inactivity and power necessities for example sniff, stop, keep, dynamic, and so forth.; ZigBee/IEEE 802.15.4 has dynamic (transmit/receive) or rest. Requisition programming should center on the requisition, not on which power mode is best for every angle of operation.

Even mains controlled gear ought to be aware of power. Think about a destiny home with 100 satellite control/sensor apparatuses,

Case 1: 802.11 Rx power is 667 mW (consistently on)@ 100 devices/home & 50,000 homes/city = 3.33 megawatts

Case 2: 802.15.4 Rx power is 30 mW (consistently on)@ 100 devices/home & 50,000 homes/city = 150 kilowatts

Case 3: 802.15.4 power cycled at .1% (commonplace job cycle) = 150 watts.

ZigBee apparatuses can be more environmental than its antecedents sparing megawatts at it full arrangement.

Low cost (apparatus, introduction, support)

Minimal effort to the users indicates level unit cost, level introduction cost and level support. ZigBee apparatuses permit electric storage devices to final up to years utilizing essential units (ease) without any chargers (minimal effort and effortless establishment). ZigBee's straightforwardness considers inborn arrangement and excess of system mechanisms gives level upkeep.

High thickness of junctions for each arrangement

ZigBee's utilize of the IEEE 802.15.4 PHY and MAC permits arrangements to handle any number of mechanisms. This property is discriminating for enormous sensor clusters and control grids.

Simple order, worldwide implementation

ZigBee's order code stack is assessed to be about 1/4th of Bluetooth's or 802.11's. Straightforwardness is crucial to cost, interoperability, and support. The IEEE 802.15.4 PHY took in by ZigBee has been configured for the 868 MHz group in Europe, the 915 MHz group in N America, Australia, and whatnot; and the 2.4 GHz group is now distinguished to be a worldwide group embraced in very nearly all nations.


ZigBee/IEEE 802.15.4-General Qualities

Dual PHY (2.4GHz and 868/915 MHz)

Data rates of 250 kbps (@2.4 GHz), 40 kbps (@ 915 MHz), and 20 kbps (@868 MHz)

Optimized for level job-cycle provisions (<0 .1=".1" font="font" nbsp="nbsp">

CSMA-CA channel access

Yields towering throughput and level inactivity for level job cycle units like sensors and controls

Low power (electric storage device essence multi-month to years)

Multiple topologies: star, associate-to-associate, cross section

Addressing space of up to:

18,450,000,000,000,000,000 gadgets (64 bit IEEE location)

65,535 system

Optional ensured time opening for requisitions needing level inactivity

Fully hand-shaked methodology for exchange reliability

Range: 50m ordinary (5-500m dependent upon earth)

ZigBee/IEEE802.15.4-Ordinary Movement Sorts Spoke to

Periodic information

Application described rate (e.g., sensors)

Intermittent information

Application/external stimulus described rate (e.g., light switch)

Repetitive level idleness information

Allocation of time openings (e.g., rodent)

Each of the aforementioned activity sorts orders distinctive characteristics from the MAC. The IEEE802.15.4 MAC is adaptable enough to handle each of the proposed sorts.

Periodic information could be took care of utilizing the beaconing framework whereby the sensor will wake up for the reference point, check for any memos then after that backtrack to doze.

Intermittent information could be took care of either in a beaconless framework or in a separated mold. In a detached operation the unit will just join to the grid when it ought to convey recovering huge life.

Low dormancy requisitions may pick to the ensured time space (GTS) alternative. GTS is a technique for QoS in that it permits every apparatus a particular span of time every Superframe to do whatever it wishes to get by in the absence of conflict or inactivity.


The IEEE 802.15.4 PHY and MAC along with ZigBee’s Network and Application Support Layer provide:

·        Extremely low cost

·        Ease of implementation

·        Reliable data transfer

·        Short range operation

·        Very low power consumption

·        Appropriate levels of security



There are two physical device types for the lowest system cost

To allow vendors to supply the lowest possible cost devices the IEEE standard defines two types of devices:  full function devices and reduced function devices

–   Full function device (FFD)

·        Can function in any topology

·        Capable of being the Network coordinator

·        Capable of being a coordinator

·        Can talk to any other device



–   Reduced function device (RFD)

·        Limited to star topology

·        Cannot become a network coordinator

·        Talks only to a network coordinator

·        Very simple implementation


An IEEE 802.15.4/ZigBee network requires at least one full function device as a network coordinator, but endpoint devices may be reduced functionality devices to reduce system cost.

–   All devices must have 64 bit IEEE addresses

–   Short (16 bit) addresses can be allocated to reduce packet size

–   Addressing modes:

–  Network + device identifier (star)

–  Source/destination identifier (peer-peer)


Frame Structure

The casing structures have been composed to keep the intricacy to a least while meanwhile making them sufficiently hearty for transmission on a loud channel. Every successive methodology layer adds to the structure with layer-particular headers and footers.

The IEEE 802.15.4 MAC demarcates four edge structures:

A reference point edge, utilized by a facilitator to transmit guides.

A information casing, utilized for all exchanges of information.

An acknowledgment casing, utilized for affirming on track outline gathering.

A MAC charge edge, utilized for taking care of all MAC associate element control exchanges.

The information casing is represented beneath:
The Physical Order Information Unit is the aggregate informative data sent over the air. As indicated in the outline above the Physical layer includes the taking after overhead:

Introduction Sequence 4 Octets

Begin of Casing Delimiter 1 Octet

Outline Length 1 Octet

The MAC includes the accompanying overhead:

Outline Control 2 Octets

Information Grouping Number 1 Octet

Location Information 4 – 20 Octets

Outline Check Sequence 2 Octets

In synopsis the aggregate overhead for a solitary bundle is accordingly 15-31 octets (120 bits); hinging on the delivering a speech to plan utilized (short or 64 cycle locations). It would be ideal if you note that the aforementioned numbers don't incorporate any security overhead.

Super Frame Structure

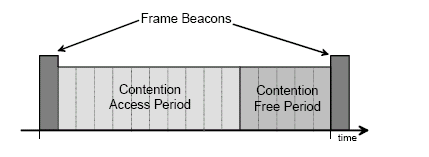

The LR-WPAN standard permits the discretionary utilize of a super frame structure. The configuration of the super frame is outlined by the organizer. The super frame is limited by grid reference points, is sent by the organizer (See Figure 4) and is isolated into 16 correspondingly estimated spaces. The reference point edge is transmitted in the first space of every super frame. In the event that a facilitator does not wish to utilize a super frame structure it might turn off the signal transmissions. The guides are utilized to synchronize the connected units, to distinguish the Container, and to depict the structure of the super frames. Any mechanism wishing to convey around the dispute access period (Top) between two reference points might rival different mechanisms utilizing an opened CSMA-CA mechanism. All transactions should be finished when of the afterward system guide.
For level inactivity requisitions or requisitions needing particular information transfer speed, the Container facilitator may commit parcels of the dynamic superframe to that requisition. The proposed divides are called ensured time openings (GTSs). The ensured time openings involve the discord unhindered period (CFP), which continuously shows up at the close of the engaged superframe beginning at a space limit quickly emulating the Top, as indicated in Figure 5. The Dish organizer may allot up to seven of the aforementioned GTSs and a GTS may involve more than one space period. Nonetheless, a sufficient divide of the Top ought remain for controversy based access of different organized units or revamped gadgets wishing to unite the grid. All dispute based transactions ought be finish soon after the CFP starts. Additionally every unit transmitting in a GTS should guarantee that its transaction is finish soon after the time of the subsequently GTS or the closure of the CFP.

MAC Data Service Diagrams











MAC Premitives

MCPS-Information – trade information parcels between MAC and PHY

MCPS-Cleanse – cleanse a MSDU from the transaction queue

MAC Management Service

MLME-ASSOCIATE/DISASSOCIATE – arrangement affiliation

MLME-Match up / Match up-Misfortune-apparatus synchronization

MLME-Sweep-output radio channels

MLME-COMM-STATUS – correspondence status

MLME-GET /-SET– retrieve/set MAC PIB parameters

MLME-Begin / Reference point-Advise – signal administration

MLME-Survey-beaconless synchronization

MLME-GTS-GTS administration

MLME-RESET – solicit for MLME to perform reset

MLME-Stray-stray apparatus administration

MLME-RX-Empower-enabling/disabling of radio framework

Security

When security of MAC layer casings is sought, ZigBee utilizes MAC layer security to secure MAC charge, guide, and recognition casings. ZigBee may secure wires transmitted over a lone bounce utilizing secured MAC information casings, anyhow for multi-bounce informing ZigBee relies upon upper layers (for example the NWK layer) for security. The MAC layer utilizes the Propelled Encryption Standard (AES) [10] as its guts cryptographic functional process and depicts a mixture of security suites that utilize the AES ordered system. The aforementioned suites can secure the secrecy, trustworthiness, and legitimacy of MAC casings. The MAC layer does the security transforming, however the upper layers, which set up the keys and confirm the security levels to utilize, control this transforming. When the MAC layer transmits (gets) a casing with security prepared, it checks out the end (origin) of the edge, recovers the crux connected with that terminus (origin), and afterward utilizes this key to process the edge consistent with the security suite designated for the nexus being utilized. Every nexus is connected with a specific security suite and the MAC casing header has a touch that indicates if security for an edge is empowered or incapacitated.

When transmitting an edge, if trustworthiness is needed, the MAC header and payload information are utilized within estimations to make a Post Uprightness Code (MIC) comprising of 4, 8, or 16 octets. The MIC is correct affixed to the MAC payload. In the event that privacy is needed, the MAC edge payload is additionally deserted annexed with edge and grouping numbers (information in previous times would shape a nonce). The nonce is utilized when encrypting the payload and additionally guarantees freshness to counteract replay ambushes. Upon receipt of a casing, if a MIC is display, its verified and if the payload is encrypted, its decrypted. Sending units will expand the casing check with each memo sent and accepting apparatuses will keep tabs on the final gained check from every sending gadget. Depending on if a content with an old tally is located, its hailed with a security mistake. The MAC layer security suites are dependent upon several modes of operation. Encryption at the MAC layer is finished utilizing AES within Counter (CTR) mode and uprightness is finished utilizing AES within Figure Square Anchoring (CBC-MAC) mode [16]. A synthesis of encryption and trustworthiness is finished utilizing a mixture of CTR and CBC-MAC modes called the CCM mode.

The NWK layer in addition makes utilize of the Progressed Encryption Standard (AES). Then again, unlike the MAC layer, the security suites are all dependent upon the CCM* mode of operation. The CCM* mode of operation is a minor alteration of the CCM mode utilized by the MAC layer. It incorporates every last trace of the capacities of CCM and moreover offers encryption-just and honesty-just competencies. These additional proficiencies streamline the NWK layer security by killing the requirement for CTR and CBC-MAC modes. Likewise, the utilization of CCM* in all security suites permits a specific key to be utilized for diverse suites. On account of a crux is not strictly bound to a lone security suite, a provision has the adaptability to determine the real security suite to connect with every NWK edge, not only if security is empowered or debilitated
When the NWK layer transmits (gets) a casing utilizing a specific security suite it utilizes the Security Utilities Supplier (SSP) to process the casing. The SSP takes a gander at the end (root) of the edge, recovers the nexus connected with that objective (root), then afterward applies the security suite to the casing. The SSP gives the NWK layer a primitive to apply security to extroverted edges and a primitive to verify and evacuate security from incoming casings. The NWK layer is answerable for the security preparing, be that as it may the upper layers control the transforming by setting up the keys and confirming which CCM* security suite to utilize for every casing.

Comparable to the MAC layer edge organize, an edge arrangement tally and MIC may be added to secure a NWK casing.



Zigbee Model



The ZigBee Network Coordinator

  Sets up a network

  Transmits network beacons

  Manages network nodes

  Stores network node information

  Routes messages between paired nodes

  Typically operates in the receive state



The ZigBee Network Node

   Designed for battery powered or high energy savings

   Searches for available networks

   Transfers data from its application as necessary

   Determines whether data is pending

   Requests data from the network coordinator

   Can sleep for extended periods


Zigbee stack

ZigBee Stack System Requirements

   8-bit mC, e.g., 80c51

   Full protocol stack <32k o:p="o:p">



   Simple node only stack ~6k



   Coordinators require extra RAM

  node device database

  transaction table

--pairing table

Network Layer


The responsibilities of the ZigBee NWK layer include:

      Starting a network: The ability to successfully establish a new network.

      Joining and leaving a network: The ability to gain membership (join) or relinquish membership (leave) a network.

      Configuring a new device: The ability to sufficiently configure the stack for operation as required.

      Addressing: The ability of a ZigBee coordinator to assign addresses to devices joining the network.

      Synchronization within a network: The ability for a device to achieve synchronization with another device either through tracking beacons or by polling.

      Security: applying security to outgoing frames and removing security to terminating frames

      Routing: routing frames to their intended destinations.



Network Routing Overview

Perhaps the most straightforward way to think of the ZigBee routing algorithm is as a hierarchical routing strategy with table-driven optimizations applied where possible.

   NWK uses an algorithm that allows stack implementers and application developers to balance unit cost, battery drain, and complexity in producing ZigBee solutions to meet the specific cost-performance profile of their application.

   Started with the well-studied public-domain algorithm AODV and Motorola’s Cluster-Tree algorithm and folding in ideas from Ember Corporation’s GRAd.



Network Summary

The network layer builds upon the IEEE 802.15.4 MAC’s features to allow extensibility of coverage.  Additional clusters can be added; networks can be consolidated or split up.
Application layer


The ZigBee application layer consists of the APS sub-layer, the ZDO and the manufacturer-defined application objects. The responsibilities of the APS sub-layer include maintaining tables for binding, which is the ability to match two devices together based on their services and their needs, and forwarding messages between bound devices. Another responsibility of the APS sub-layer is discovery, which is the ability to determine which other devices are operating in the personal operating space of a device. The responsibilities of the ZDO include defining the role of the device within the network (e.g., ZigBee coordinator or end device), initiating and/or responding to binding requests and establishing a secure relationship between network devices. The manufacturer-defined application objects implement the actual applications according to the ZigBee-defined application descriptions



ZigBee Device Object

      Defines the role of the device within the network (e.g., ZigBee coordinator or end device)

      Initiates and/or responds to binding requests

      Establishes a secure relationship between network devices selecting one of ZigBee’s security methods such as public key, symmetric key, etc.



Application Support Layer

This layer provides the following services:

      Discovery: The ability to determine which other devices are operating in the personal operating space of a device.

      Binding: The ability to match two or more devices together based on their services and their needs and forwarding messages between bound devices


The Inevitable Question is whether ZigBee and Bluetooth are competitors or complements?



Bluetooth seems best suited for:

·        Synchronization of cell phone to PDA

·        Hands-free audio

·        PDA to printer

While ZigBee is better suited for:
·        Controls
·        Sensors
·        Lots of devices
·        Low duty cycle
·        Small data packets
·        Long battery life is critical

Air Interface comparison:


ZigBee

DSSS

11 chips/ symbol

62.5 K symbols/s

4 Bits/ symbol



Peak Information Rate

    ~256 Kbit/second

Bluetooth

FHSS

1600 hops / second

1 M Symbol / second

1 bit/symbol



Peak Information Rate

    ~108-723 kbit/second




Battery Drain comparison to Bluetooth



Packet length can affect battery drain.  Typically the shorter the packet the quicker the device can go to sleep.  Bluetooth is a slotted protocol.  Communication can occur in either: 625 µS, 1875 µS, or 3125 µS slots.

The following graph showing effective data rate was based upon the transmissions speeds stated in Bluetooth v1.1 and IEEE 802.15.4 draft 18, using the 250 kb/s rate.  The general trend is that at larger packet sizes the effective data rate approaches the raw data rate.

The peaks for the Bluetooth rate are a result of the three slot sizes, when a packet becomes too big for one slot it must increment to the next slot even though it doesn’t fill the whole slot allocation.

IEEE 802.15.4 was designed for small packets so it is no surprise it is more efficient at those small packets resulting in a higher effective rate despite its lower raw data rate.

From this graph we can see that for packets less than 75 bytes ZigBee has a higher effective data rate than Bluetooth.  Having a lower rate for small packets means that BT needs longer transmit and receive times and therefore current drain is higher for small data packets.

Although these numbers do not represent retransmissions or multiple devices requesting the bandwidth; the author believes that the same traits will be exhibited in these other cases.

Timing Contemplations

ZigBee

New slave list = 30ms commonly

Slumbering slave altering to engaged = 15ms normally

Engaged slave channel access time = 15ms normally

Bluetooth

New slave list = >3s, commonly 20s

Slumbering slave altering to engaged = 3s normally

Engaged slave channel access time = 2ms normally

Summation:

ZigBee units can rapidly connect, trade informative content, isolate, and after that run over to profound doze to accomplish a particularly extended electric storage device essence. Bluetooth apparatuses need about ~100X the force for this operation.

Power Contemplations

ZigBee

2+ years from ‘normal’ electric storage devices

Designed to advance slave power prerequisites

Bluetooth

Power model as a cellular telephone (standard day by day charging)

Designed to amplify specially appointed purpose

Seeing that IEEE 802.15.4 utilizes a CSMA-CA methodology the close junctions just talk when they have information to send with the emulating profits:

No holding up for surveying (be that as it may they should sit tight for a clear channel which shouldn’t be a situation in flat job cycle systems for example with sensor and control units)

Current empty is significantly decreased over a surveying methodology that should survey to administer latencies in spite of the fact that the larger part of the time the unit required be surveyed

IEEE 802.15.4 order was composed to yield 6 months to 2 yrs on soluble cell

ZigBee Electric storage device Empty

In this segment we’ll take a gander at diverse angles of an organized unit's electric storage device empty.

An average situation for sensors and control mechanisms is to remain “joined” with the arrangement. We utilize associated with mean that the unit intermittently listens for incoming bundles. In this way the apparatus' conduct may be changed or in any event checked to verify accuracy.

Situation 1: ZigBee Electric storage device Empty, arrangement association

How about we explore a couple of perspectives for ZigBee units:

Objective: Two year electric cell essence

Suspicions:

AAA unit = 1.15 Ahr (Duracell soluble)

2 yrs = 17,532 hrs

Halfway outcome: Normal current empty < 65 µA (capacity/time)

Tx/Rx current empty ~ 15 mama and rest current = 1 µA

Incomplete outcome: Most extreme calling cycle < .43% (Avg. current empty-doze current)/current empty

Beacon term of 3 mS (longer reference points holding more informative data could empty more present)

Beacon rate of 1/s (signal rates could be as moderate as .03/s)

Incomplete outcome: reference point utilize as a part of this case needs a .3% job cycle

Last outcome: 22.8 hours (0.13%) of transmission time could be took into consideration information transmission or gathering

Situation 2: Electric cell Empty when the unit is not joined with the arrangement

This mode could be utilized to amplify electric storage device essence. The unit will just interface with the system when it ought to send information. A detriment of this method is that the mechanism lack the capacity to be sent information, so for the most part its occasional part of the system.

Presumptions:

Device will interface just when essential to send information

Acquisition time

Bluetooth needs something like 20 – 30 seconds (~98% expectancy) for an Analysis (first time) and in the vicinity of 3 seconds for a Page (ensuing times)

IEEE 802.15.4 obtaining time is in the ballpark of 30 mS

Using most extreme calling cycle of .43% and 40 byte parcel

Come about:

~ 45,140 information transmissions for Bluetooth

~ 4,269,670 information transmissions for ZigBee

Electric storage device empty summation: ZigBee has an inborn playing point for these modes of operation because of its short join time or its fitness to remain in the doze mode for extended periods.

Connection Synopsis

ZigBee and Bluetooth are two explanations for two unexpected requisition zones.

The distinctions are from their methodology to their craved requisition. Bluetooth has delivered a speech to a voice requisition by exemplifying a speedy recurrence bouncing framework with an expert slave methodology. ZigBee has spoke to sensors, controls, and different short inform provisions by encapsulating an immediate grouping framework with a star or companion to companion methodologies.

Minor updates to Bluetooth or ZigBee won’t update their inborn conduct or aspects. The distinctive conducts originate from building divergences.
